Crane Outrigger Pads
Durable UHMWPE Pads for Maximum Stability and Ground Protection
Our Crane Outrigger Pads are engineered from premium UHMWPE, providing outstanding strength, durability, and resistance to wear. Lightweight yet incredibly tough, they are an essential support solution for construction, lifting, and heavy equipment industries.
Crane Outrigger Pads Information

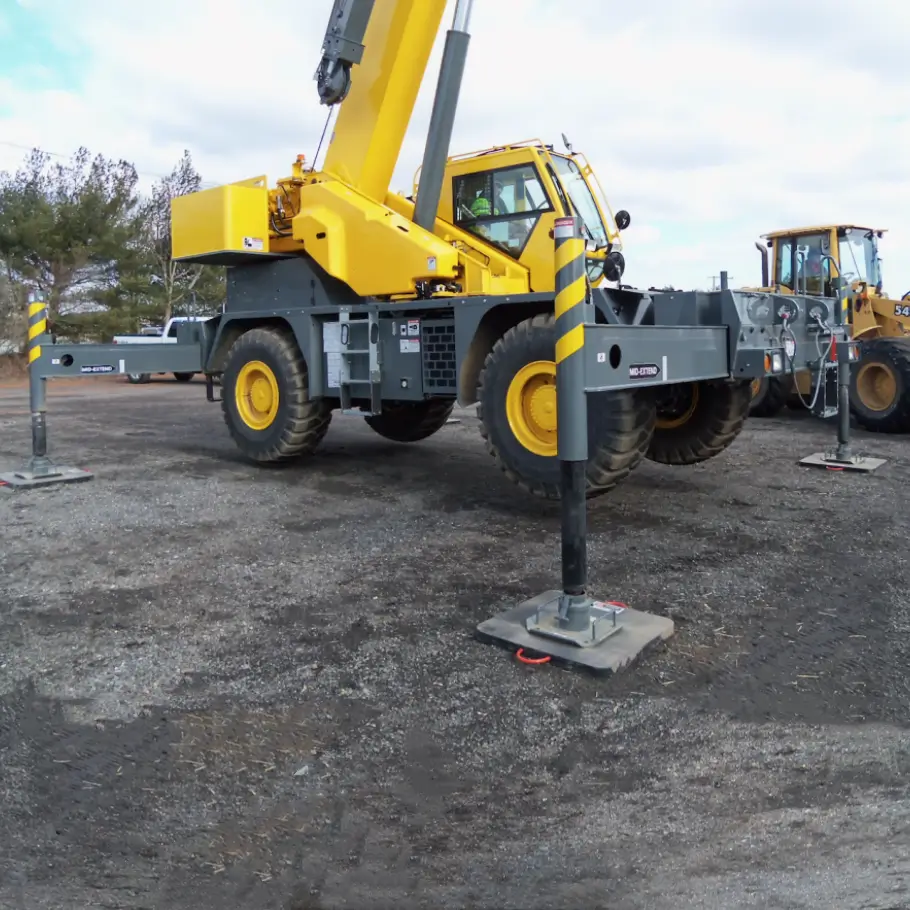

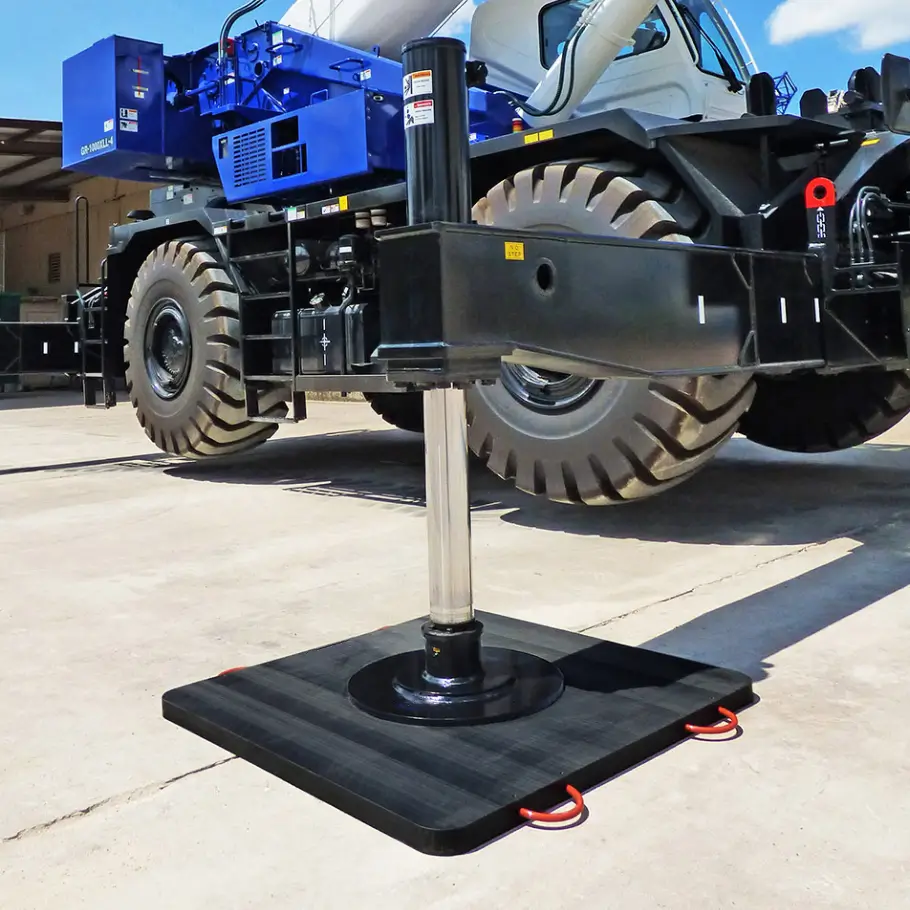

Crane outrigger pads are critical safety devices designed for use with equipment equipped with outriggers, down jacks, or stabilizers. Commonly used with cranes, aerial work platforms, concrete pump trucks, fire trucks, mobile cranes, utility trucks, and other heavy machinery, they ensure stability and safety during operations involving heavy loads or personnel being lifted to elevated positions.
By evenly distributing the load over a larger surface area, the pad reduces ground pressure and prevents equipment from sinking, tipping, or becoming unstable, especially on soft or uneven terrain. This simple yet highly effective tool minimizes the risk of accidents, ensuring smooth and secure operations.
Applications of Crane Outrigger Pads
- Mobile Cranes
- Truck-Mounted Cranes
- Aerial Work Platforms
- Concrete Pumping Trucks
- Utility and Maintenance Vehicles
- Any heavy equipment requiring load distribution on soft or uneven ground
UHMWPE Crane Outrigger Pads' Key Features:
UHMWPE, or Ultra-High Molecular Weight Polyethylene, is a type of thermoplastic with exceptionally long polymer chains, resulting in outstanding strength and durability. It is widely recognized for its excellent wear resistance, low friction, and high impact strength. Additionally, UHMWPE is resistant to chemicals, moisture, and UV radiation, making it a versatile material for demanding applications.
Advantages of Using UHMWPE for Crane Outrigger Pads:
1. High Load Capacity:
UHMWPE can withstand extremely high loads without deforming, making it ideal for supporting heavy cranes and other machinery.
2. Lightweight:
Despite its strength, UHMWPE is significantly lighter than traditional materials like steel, making the pads easier to handle and transport.
3. Wear Resistance:
UHMWPE offers exceptional resistance to abrasion and wear, ensuring long service life even under harsh working conditions.
4. Corrosion Resistant:
Unlike metal pads, UHMWPE is resistant to corrosion, providing enhanced safety and durability in various environments.
5. Low Maintenance:
UHMWPE does not absorb water or swell, and it requires minimal maintenance, reducing operational downtime.
6. Environmental Adaptability:
UHMWPE performs well in a wide range of temperatures and weather conditions, ensuring reliable performance in both hot and cold environments.
7. Surface Protection:
The material’s low friction and non-marking properties prevent damage to surfaces such as concrete or asphalt, preserving the integrity of the working area.
Why choose us:
For the outrigger pads, we can provide diversified customized services, as follows:

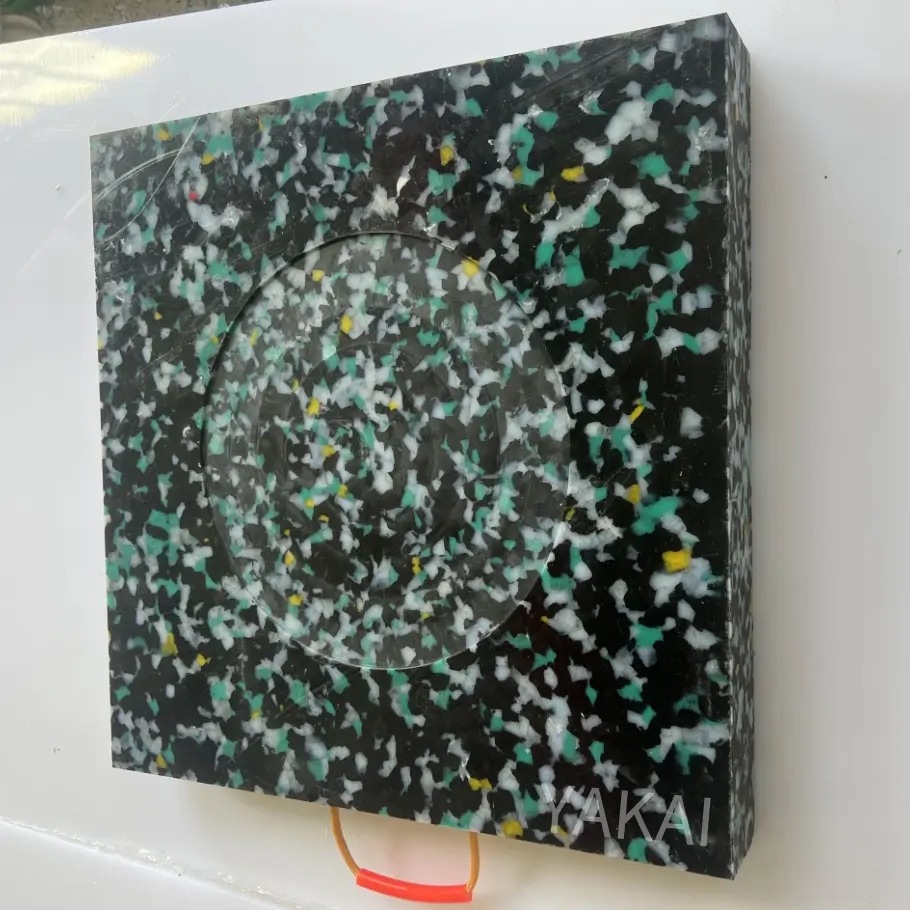

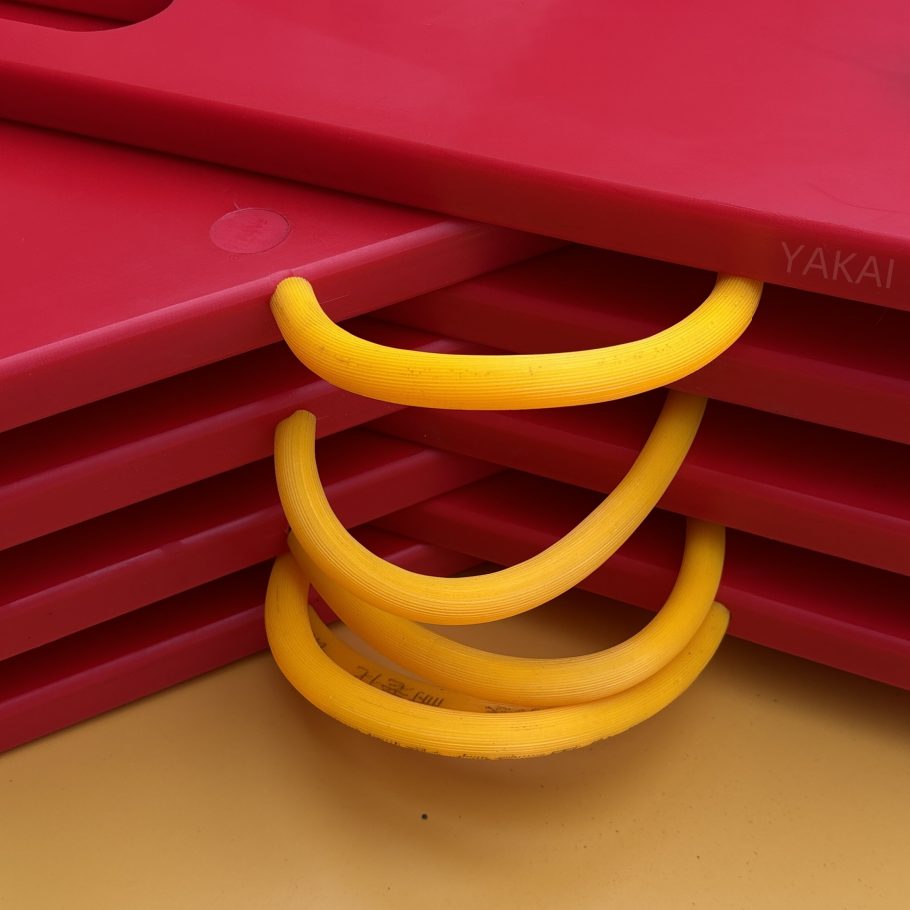

Color: Color can be customized
Logo: Logo engraving service, if needed

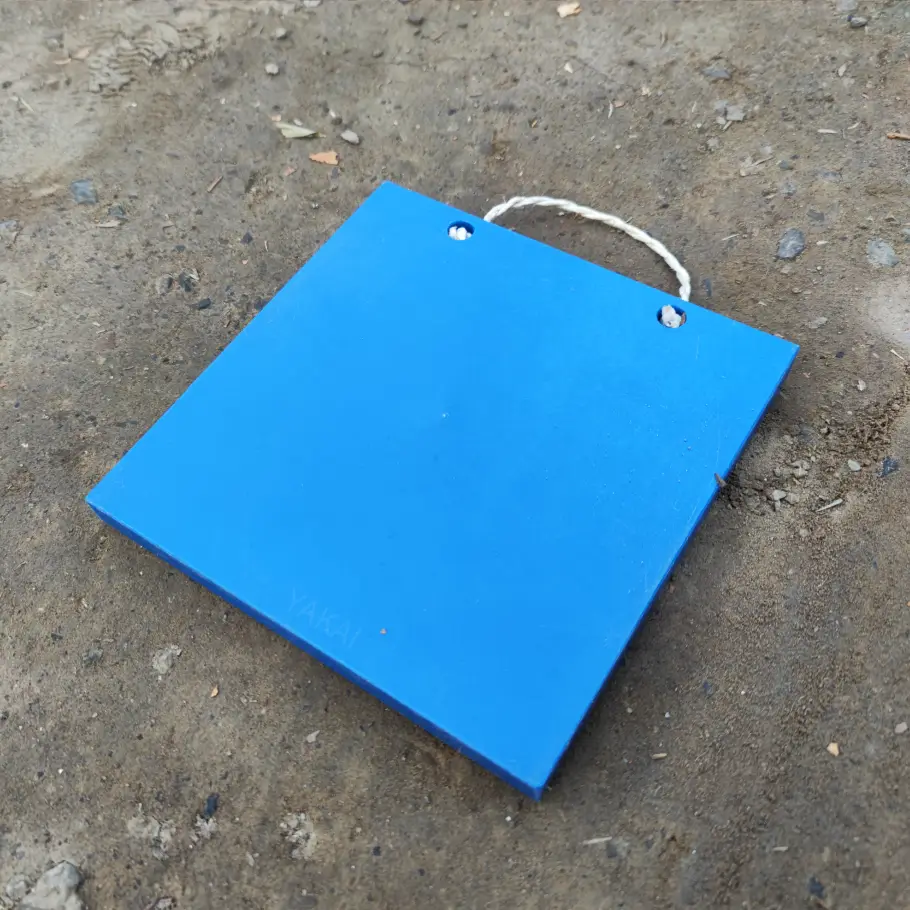

Shape: Square or round

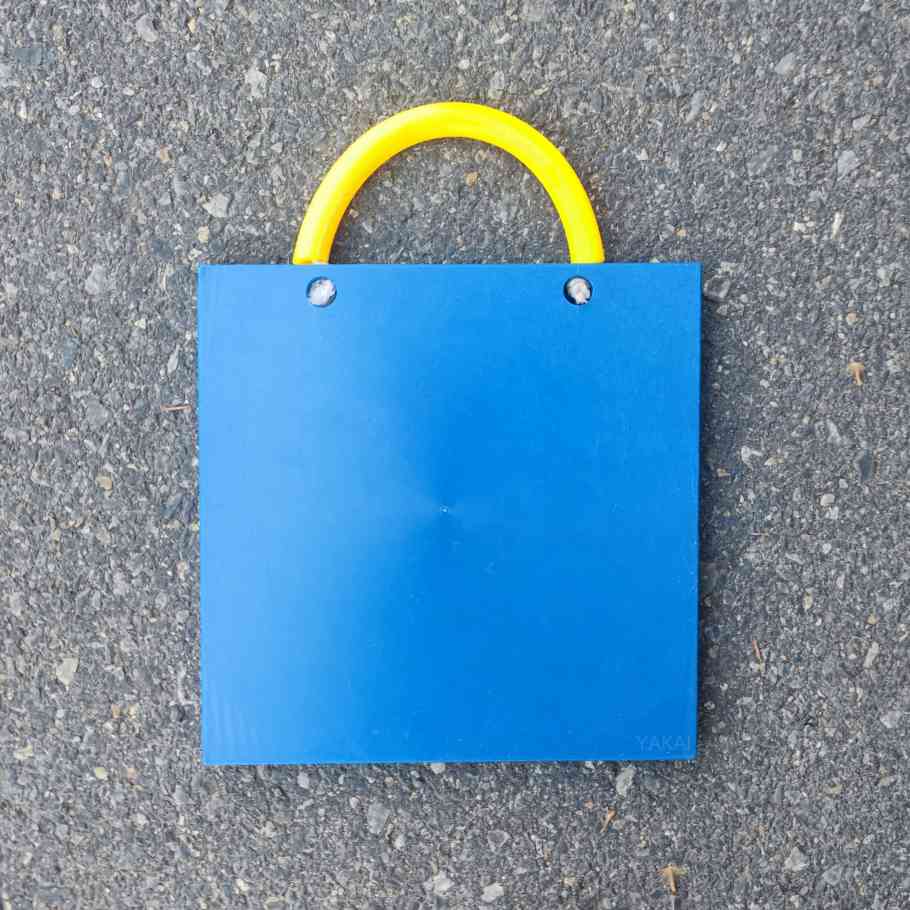

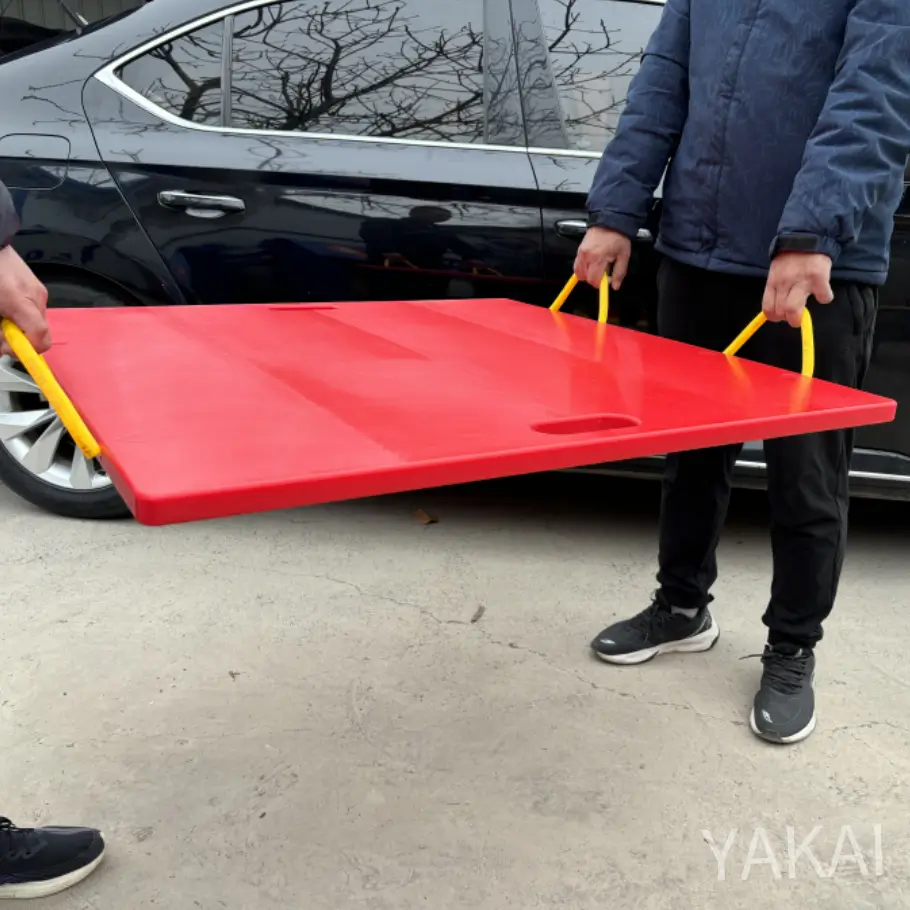

Handle: Different handle designs to make it easier to use

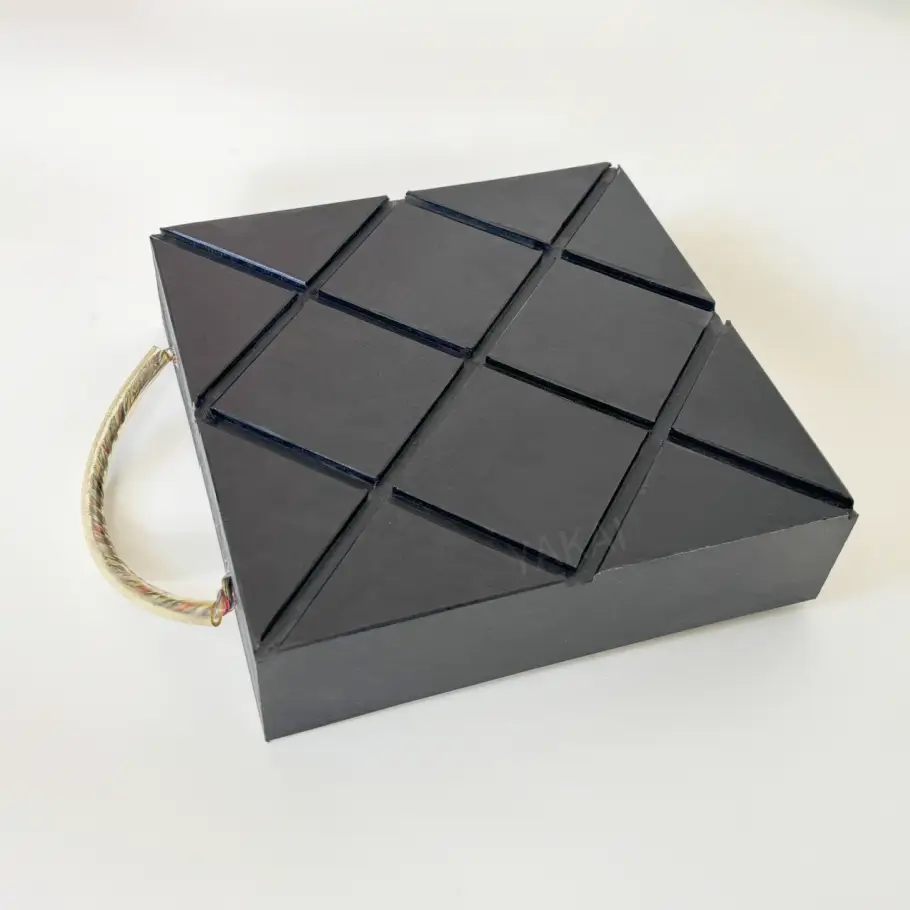

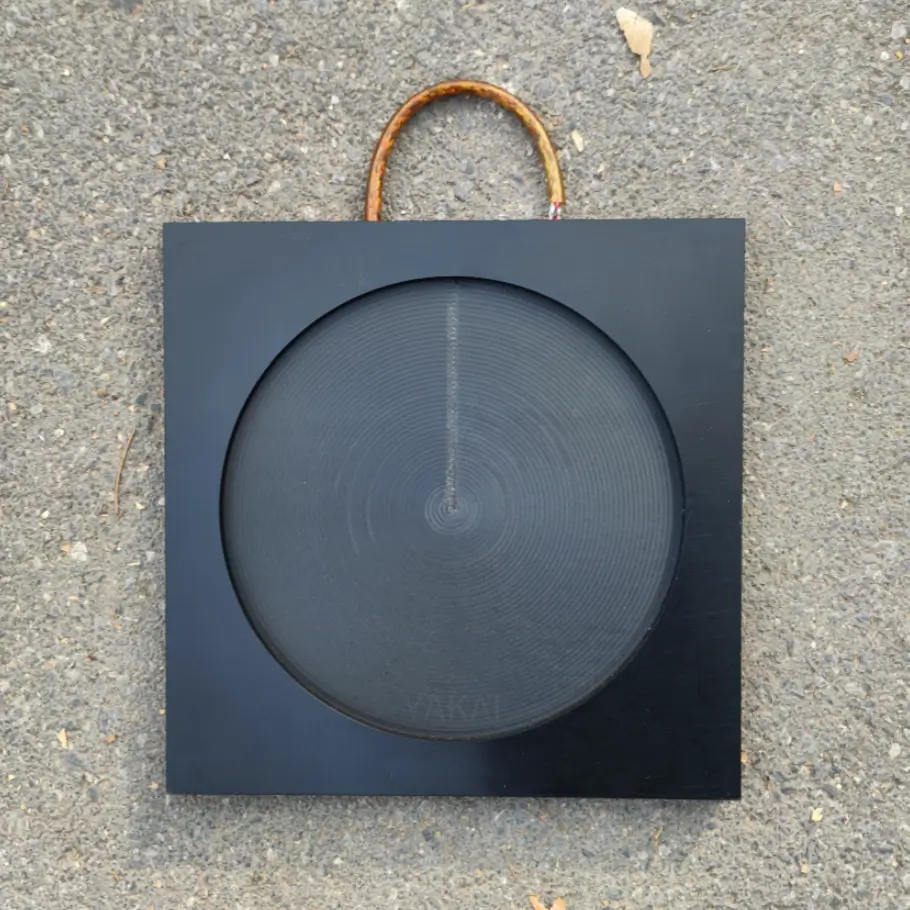

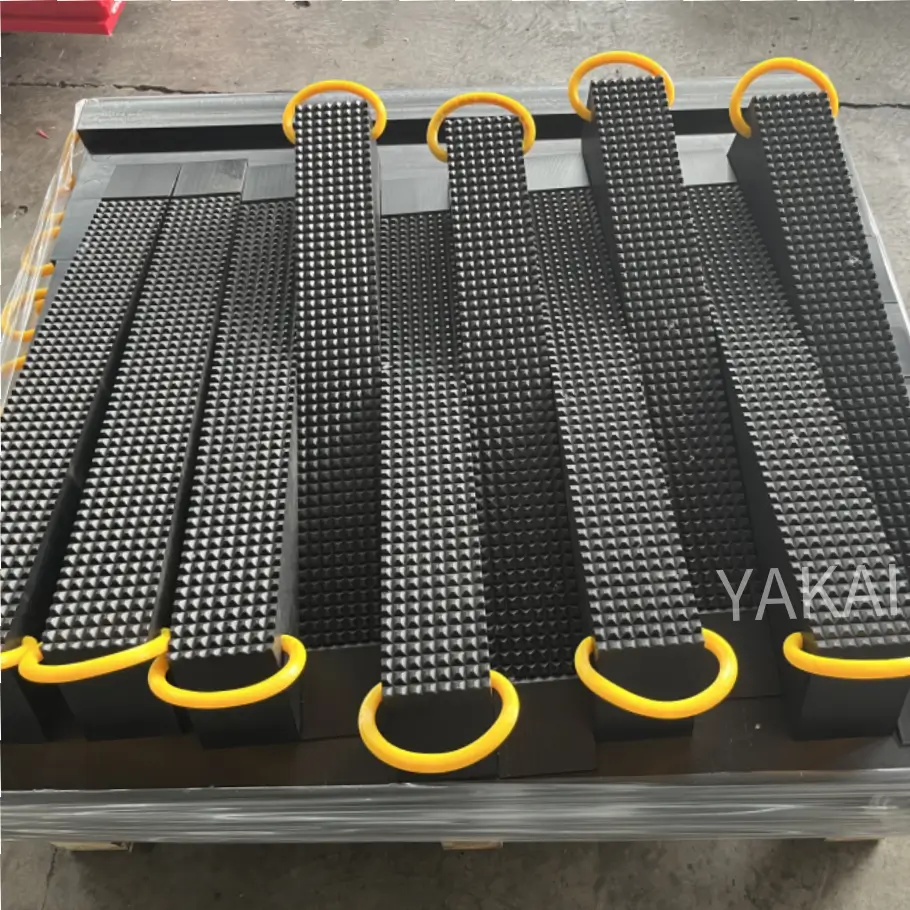

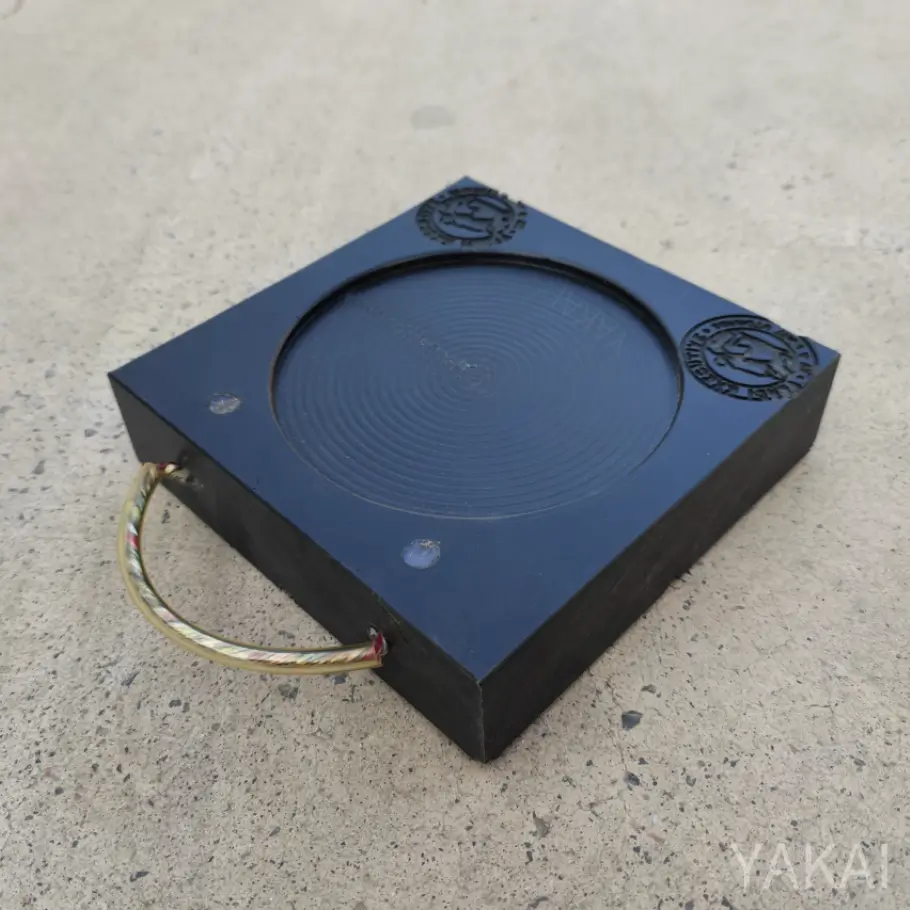

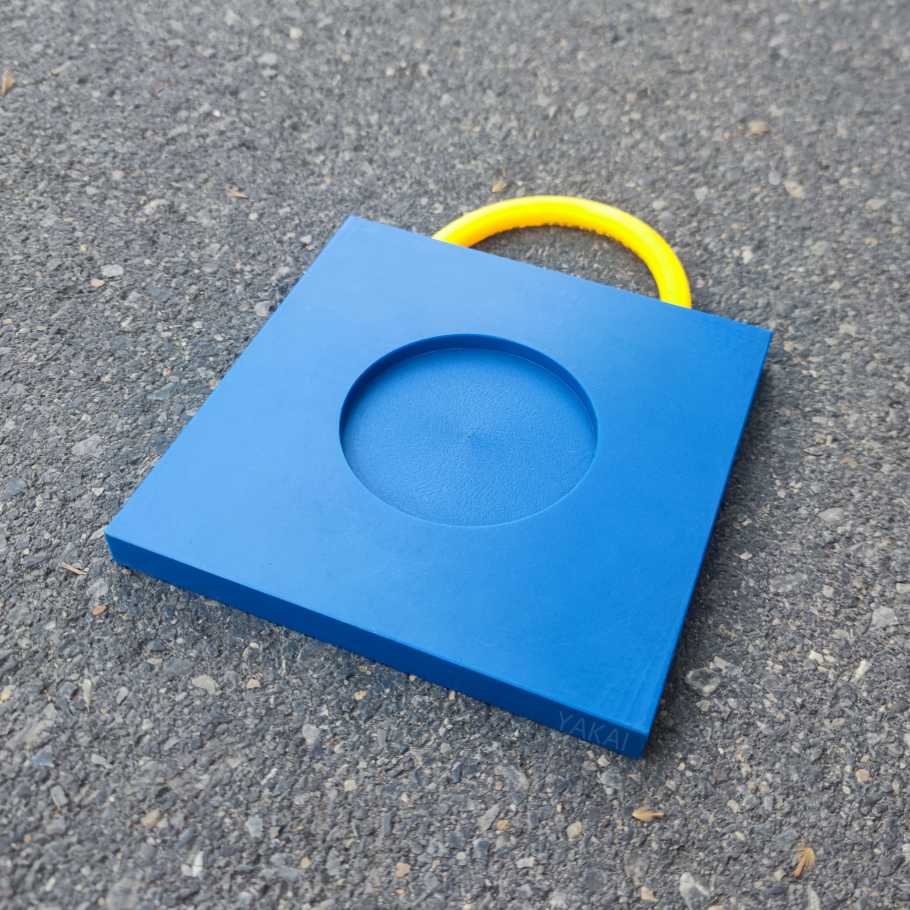

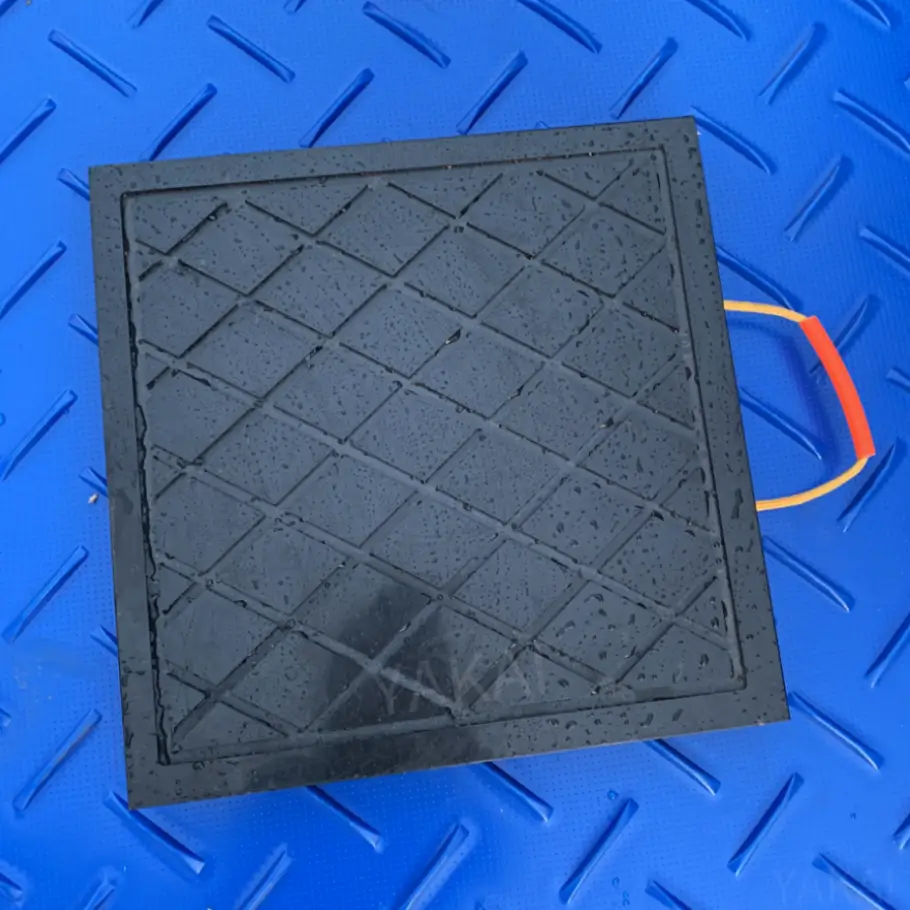

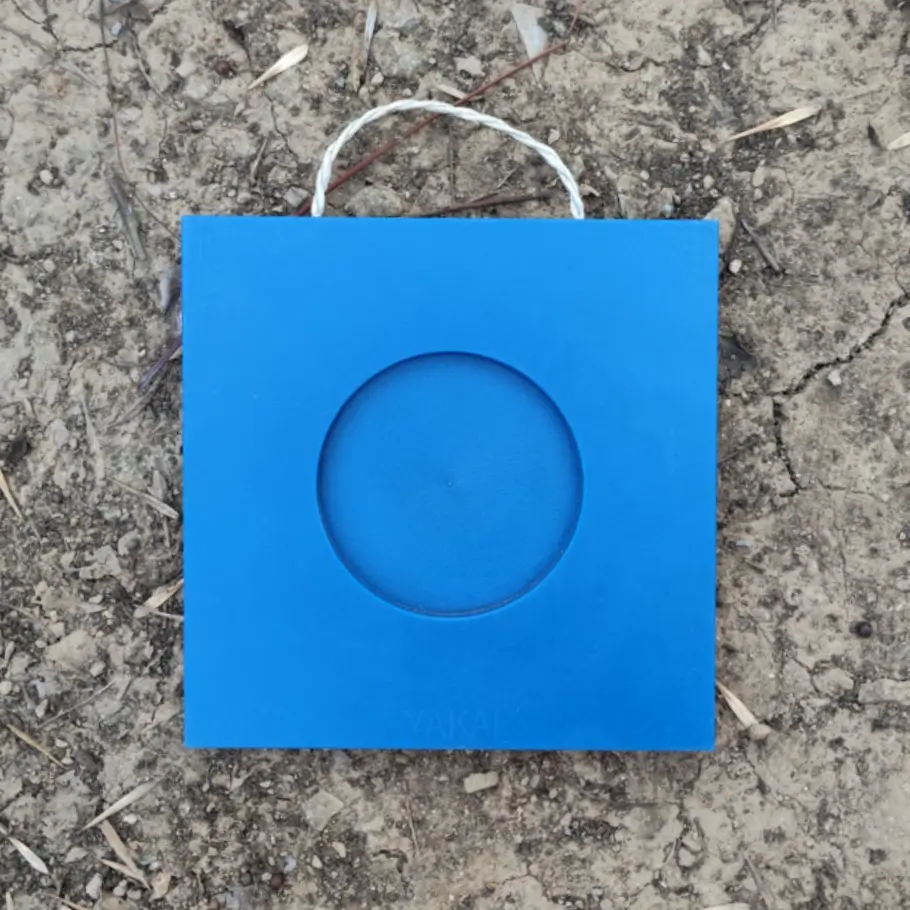

Surface: A Recessed or anti-slip surface is available.
Our pads are precision-manufactured to meet the highest standards of performance and safety. Whether you’re working on muddy construction sites, paved city roads, or uneven terrain, our UHMWPE pads ensure your equipment remains stable and the ground is protected.
Common Sizes:

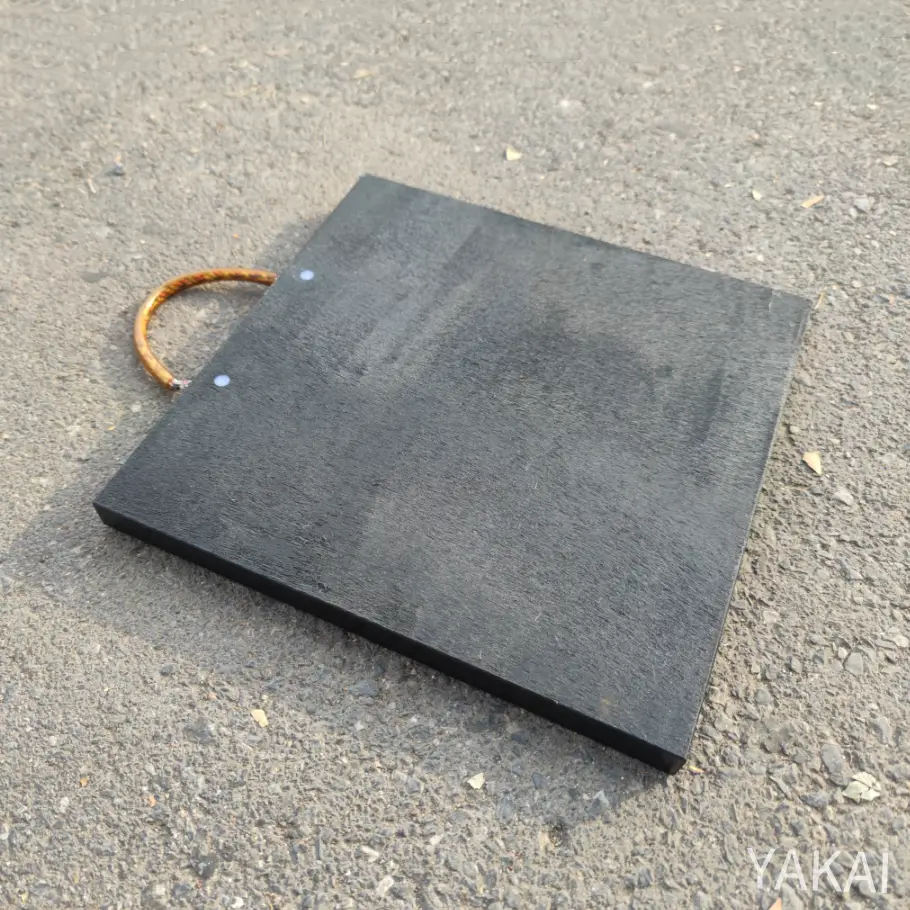

SQUARE OUTRIGGER PADS
| DIMENSIONS | LOAD CAPACITY | WEIGHT |
|---|---|---|
|
LXWXH(MM) |
(TONNES) |
(KGS) |
|
400X400X40 |
12 |
6.4 |
|
500X500X40 |
16 |
10 |
|
500X500X50 |
19 |
12.5 |
|
500X500X60 |
27 |
15 |
|
600X600X40 |
21 |
14.2 |
|
600X600X50 |
27 |
18 |
|
600X600X60 |
31 |
21.2 |
|
800X800X40 |
37 |
25.3 |
|
800X800X50 |
42 |
31.3 |
|
800X800X60 |
47 |
38.4 |
|
1000X1000X40 |
42 |
39.2 |
|
1000X1000X50 |
52 |
49.5 |
|
1000X1000X60 |
73 |
59.5 |
|
1000X1000X80 |
105 |
79 |
|
1200X1200X40 |
71 |
57.6 |
|
1200X1200X50 |
78 |
72 |
|
1200X1200X60 |
115 |
86 |
|
1200X1200X80 |
126 |
114 |
|
1200X1200X100 |
168 |
143 |

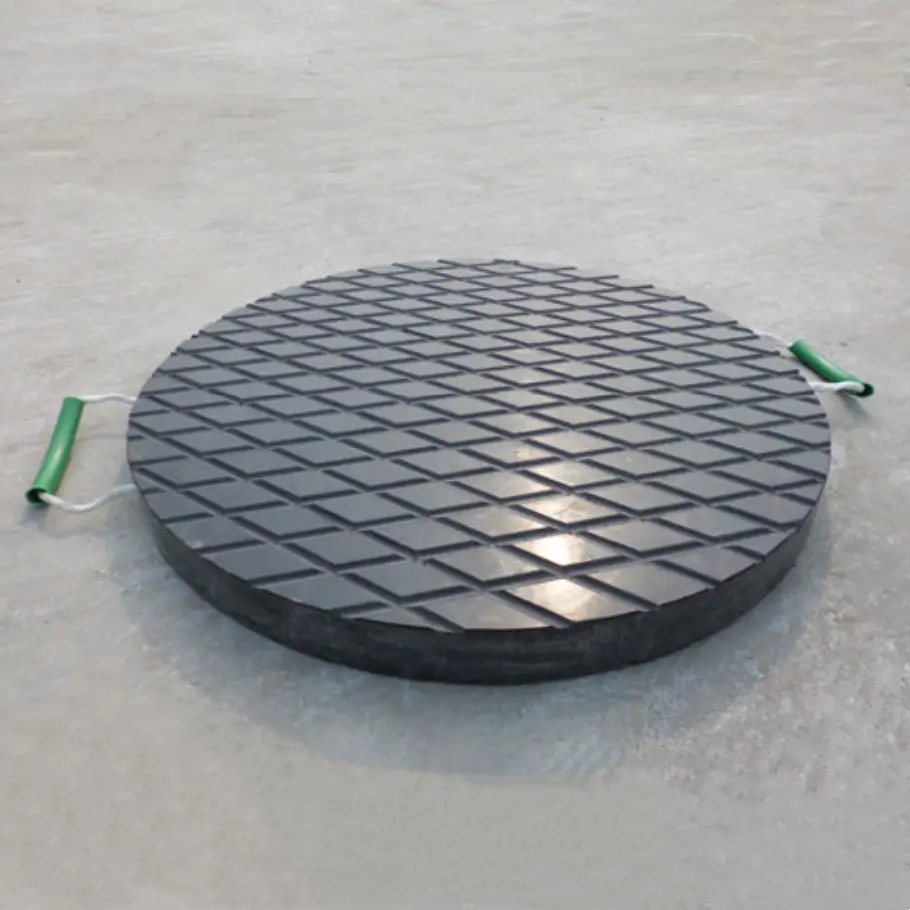

ROUND OUTRIGGER PADS
| DIMENSIONS | LOAD CAPACITY | WEIGHT |
|---|---|---|
|
DXH(MM) |
(TONNES) |
(KGS) |
|
650X50 |
26 |
16.5 |
|
800X40 |
26 |
20 |
|
800X50 |
37 |
25 |
|
800X60 |
42 |
30 |
|
900X40 |
31 |
25 |
|
900X50 |
48 |
31 |
|
900X60 |
52 |
38 |
|
1000X40 |
37 |
31 |
|
1000X50 |
52 |
39 |
|
1000X60 |
63 |
47 |
|
1000X70 |
79 |
54 |
|
1000X80 |
84 |
62 |
|
1200X40 |
52 |
45 |
|
1200X50 |
68 |
56 |
|
1200X60 |
94 |
67 |
|
1200X70 |
115 |
79 |
|
1200X80 |
126 |
90 |
FAQ
What size crane outrigger pad should I choose?
The appropriate size depends on your equipment type, ground conditions, and required load capacity. We recommend contacting our technical support team with your equipment details and application scenario so we can recommend the most suitable size and model for your needs.
What sizes are available for your Crane Outrigger Pads?
We offer standard sizes as well as fully customizable dimensions, thicknesses, and shapes to suit your specific machinery and load requirements.
How is UHMWPE different from other plastic pads?
UHMWPE (Ultra-High Molecular Weight Polyethylene) offers exceptional abrasion resistance, impact strength, and chemical resistance. Compared to ordinary plastic pads, UHMWPE outrigger pads provide superior strength, rigidity, and durability, even in harsh environments.
What are the advantages of UHMWPE pads over wood pads?
Wood pads tend to absorb moisture, rot, and crack over time, and their performance can vary with environmental conditions. UHMWPE pads do not absorb water, do not rot, and offer greater strength and stability with a longer service life and lower maintenance costs.
Can I add my company name or logo to the pads?
Yes, we offer customization options to engrave your company name, logo, or safety messages on the pad surface. This helps with brand visibility and prevents loss or misuse of the pads.
Are the pads resistant to water and chemicals?
Absolutely. UHMWPE outrigger pads are non-absorbent and highly resistant to most common chemicals, making them ideal for wet, rainy, or chemically exposed environments.
